| 小体积,低功耗,3轴±3g iMEMS®带模拟输出的加速度传感器 |
|
发布时间：2006/9/14 阅读：4666次 |

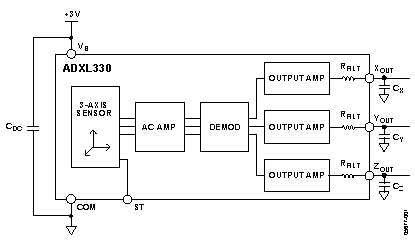

ADXL330
-
3 axis (X, Y, Z) sensing
-
Small, low-profile package: 4×4×1.45mm LFCSP
-
Low power: 180µA at 1.8V (typ)
-
Single-supply operation: 1.8 to 3.6V
-
10,000 g shock survival
-
Stable zero g bias and accurate sensitivity
-
BW adjustment with a single capacitor
-
RoHS/WEEE lead-free compliant
ADXL Low-g Accelerometer Selection Table
|
Part# |
# of
Axes |
Range |
Sensitivity
Accuracy
(%) |
Output
Type |
**Max
Band
Width
(kHz) |
Noise
Density
(µg/rtHz) |
Voltage
Supply
(V) |
Supply
Current
(mA) |
Temp
Range(°C) |
Package |
|
ADXL103 |
1 |
±1.7g |
±4 |
Analog |
2.5 |
110 |
5
(3 to 6) |
0.7 |
-40 to
125°C |
E-8 |
|
ADXL203 |
2 |
±1.7g |
±4 |
Analog |
2.5 |
110 |
5
(3 to 6) |
0.7 |
-40 to
125°C |
E-8 |
|
ADXL204 |
2 |
±1.7g |
±4 |
Analog |
2.5 |
170 |
3.3
(3 to 6) |
0.5 |
-40 to
125°C |
E-8 |
|
ADXL213 |
2 |
±1.2g |
±10 |
PWM |
2.5 |
160 |
5
(3 to 6) |
0.7 |
-40 to
85°C |
E-8 |
|
ADXL330 |
3 |
±3g |
±10 |
Analog |
1.6(XY)
0.55(Z) |
280(X,Y)
350(Z) |
1.8 to 3.6 |
0.18
@1.8V |
-25 to
70° |
CP-16 |
|
ADXL320 |
2 |
±5g |
±10 |
Analog |
2.5 |
250 |
2.4 to 6 |
0.5 |
-20 to
70°C |
CP-16 |
|
ADXL321 |
2 |
±18 |
±10 |
Analog |
2.5 |
320 |
2.4 to 6 |
0.5 |
-20 to
70°C |
CP-16 |
|
ADXL322 |
2 |
±2g |
±10 |
Analog |
2.5 |
220 |
2.4 to 6 |
0.5 |
-20 to
70° |
CP-16 |
|
ADXL323 |
2 |
±3g |
±10 |
Analog |
1.6 |
280 |
1.8 to 5.25 |
0.18
@1.8V |
-25 to
70° |
CP-16 |
|
ADXL311 |
2 |
±2g |
±15 |
Analog |
6 |
300 |
2.4 to 5.25 |
0.4 |
0 to
70°C |
E-8 |
|
ADXL202 |
2 |
±2g |
±16 |
PWM |
6 |
200 |
3 to 5.25 |
0.6 |
-40 to
85°C |
E-8 |
|
ADXL210 |
2 |
±10g |
±20 |
PWM |
6 |
200 |
3 to 5.25 |
0.6 |
-40 to
85°C |
E-8 | |
| |
|
|
|
|
|
 |
|
|
|
